Face Challenges

In mobile environments such as field survey, marine scientific research, rail transit and radar detection, besides high-performance storage for real-time data recording, real-time processing of collected data is still required with the requirement of data processing efficiency, which requires that the computing center has mobility and flexibility, and also requires higher performance requirements for storage, computing power and network.

Digital Rubik’s Cube (Arithmetic Center) Solution

Green computing technology conforms to the needs of the times and is committed to the development of lightweight, miniaturization and integration of platforms, while integrating the requirements of high-performance computing. By integrating intelligent computing, high-performance storage, high-performance network and business processing capabilities, and on top of the original classic digital intelligence cube (computing center) platform, a highly mobile intelligent computing platform has been successfully developed. The platform is not only suitable for field operations, but also can adapt to various environments such as on-board, ship-borne and airborne, and meet the application scenarios of rail transit and cloud data migration. The overall equipment design is flexible and can be configured and adjusted according to different use environments to meet the needs of high-performance computing in mobile environments to the greatest extent.

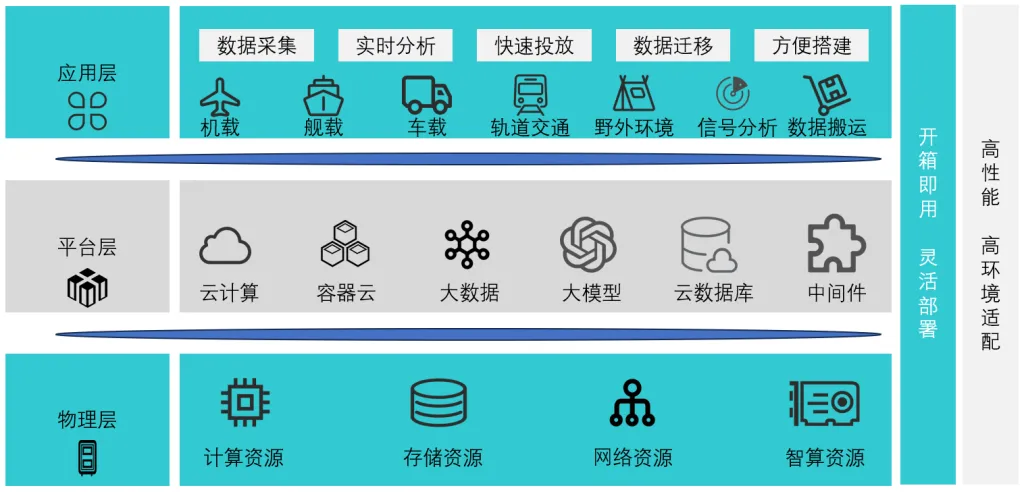

System Architecture

Product Feature

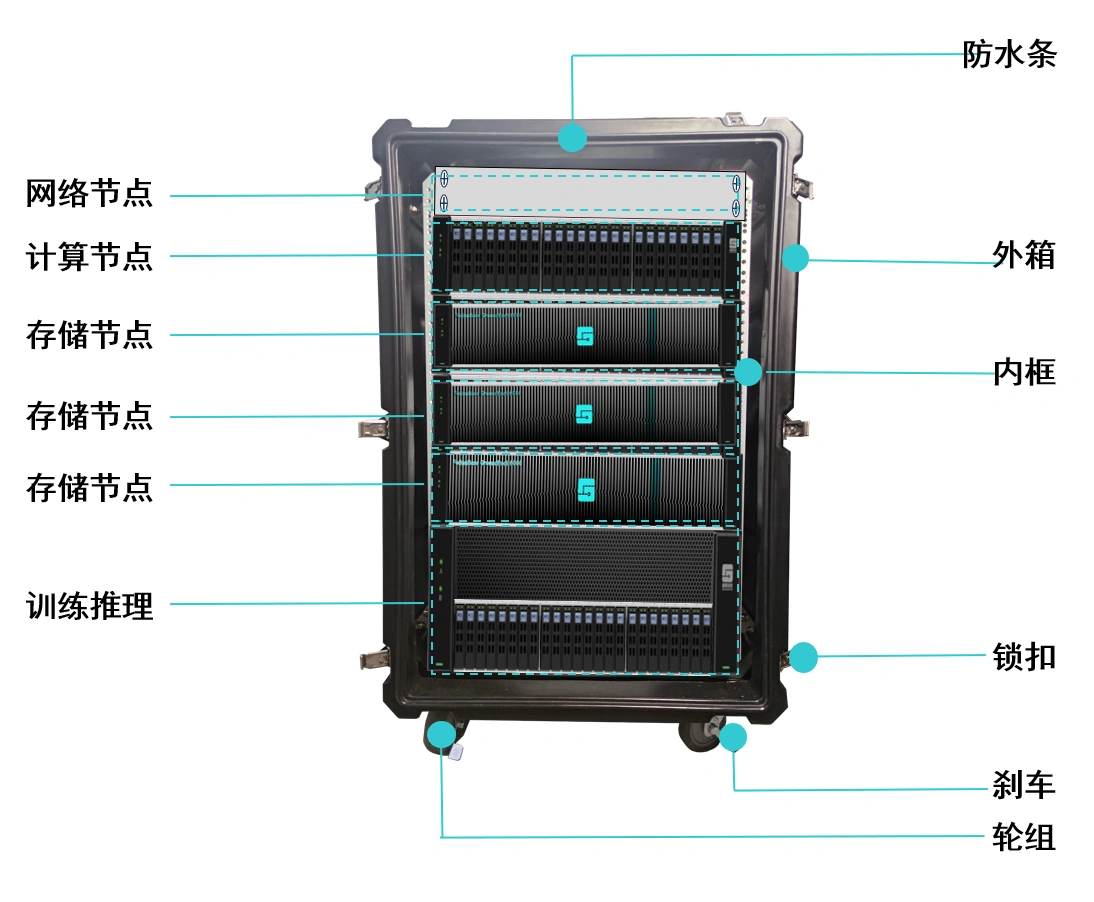

The overall appearance protection of the Digital Intelligence Cube (Calculation Center) adopts the design of aviation box, which solves the problem of effective protection during long-distance transportation of the Digital Intelligence Cube (Calculation Center). The roller structure is installed at the bottom of the Digital Intelligence Cube (Calculation Center), which can solve the mobility problem during transportation. Open the front and back cover, you can power up and use, to meet the purpose of rapid release.

Size Standard: digital intelligence cube (calculation center) can directly send aerospace parts, product appearance in line with the relevant provisions of the International Air Transport Association (IATA). Digital intelligence Rubik’s cube (calculation center) box body has good compression resistance and seismic performance.

The design of Digital Intelligence Cube (Calculation Center) fully considers the needs of users and the actual application environment, aiming to provide an efficient, reliable and flexible overall solution. The main characteristics of Digital Intelligence Cube (Calculation Center) are as follows:

High IOPS: Meet the requirements of high-performance parallel read and write business scenarios;
High throughput: meet the needs of data upload and download, and realize fast data migration;
Massive space requirements: to meet user demand for large-capacity storage;
High scalability: Support horizontal cascade expansion of multiple number cube (calculation center) and vertical expansion of internal capacity;
Standardized appearance structure: meet the relevant requirements of aviation, railway and water transportation, and facilitate the movement of equipment;
Built-in structural support: suitable for field temporary environment, can realize rapid release and multi-scene adaptation, such as emergency rescue, field command, satellite/radar signal reception, on-site relay, etc.;
Low power consumption: can greatly reduce the supply pressure;
Standardized, modular design: easy to integrate quickly.

Core Performance

High bandwidth: Single storage node bandwidth ≥ 50GB/s.

High concurrency: Single storage node IOPS ≥ 5100k.

Low latency: RDMA technology is used to achieve extreme latency, reaching μs level.

High performance network: 100Gb/s

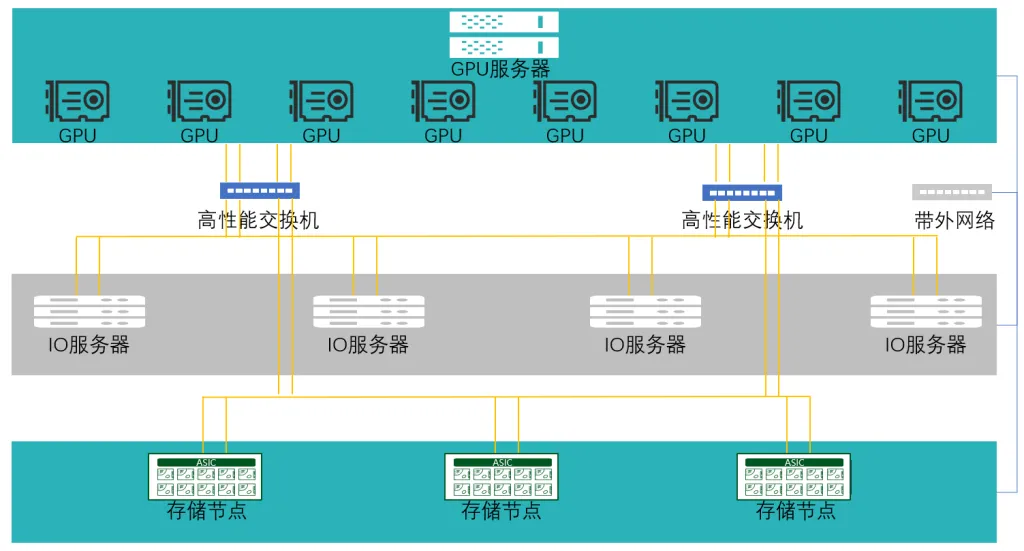

System Networking

The core storage of Digital Intelligence Cube (Calculation Center) is realized by EBOF products of green computing technology. The odd number of intelligent cube (Calculation Center) includes 4 server nodes, 3 storage nodes (EBOF), 2 network nodes and 1 GPU node. All nodes can be selected according to demand. Platform compatible operating systems: Windows, Red Hat, CentOS, Ubuntu, SUSE, Unixin UOS, Kirin, Huawei Euler, etc.
Database: Oracle, SQL server, MySQL, SAP HANA, Dameng, RJC, NDatong Use, Shenzhou GM, AsiaInfo Technology, Xugu Weiye, Youxuan, etc.

Virtualization: VMware, Hyper-V, KVM, CAS, Cloud Axis ZStack, Huawei, FusionCompute, Cloud Macro CNware WinStack, etc.

Technical Specifications

	Appearance Characteristics
Product Size	Height 1000mm Width 646mm Depth 1000mm
	Power Supply Performance
Products Power	6000W, 220V, frequency:47~63Hz;；
	Enviromental Parameter
Operating Temperature	5 ° C ~ 40 ° C Storage temperature-30 ° C ~60 ° C;
Operating Humidity	5% ~ 95% non-condensing
	Warranty Information
Warranty Policy	The whole machine is guaranteed by the original factory for three years
Warranty Remarks	7*24 hours limited warranty service, service upgrade

Program Valu

Digital Intelligence Cube (Computing Center) expands the use scenario on the basis of mass data migration, adapts to complex environment or temporary environment, and realizes the ability of miniature mobile data center:

●Mobility and flexibility Considering that the equipment needs to undergo multiple transportation modes during long-distance transportation, the Digital Intelligence Cube (Computing Center) emphasizes a high degree of mobility and flexibility in industrial design. Its structural design is robust and durable, able to withstand short towing distances to adapt to different transport and environmental conditions.

●High performance and high bandwidth

In order to reduce the migration time of massive data, the digital intelligence cube (calculation center) is equipped with high-performance data processing capability, which can process data locally, greatly reducing the time consumption of data processing and processing.

●Data security and redundancy

Digital intelligence cube (calculation center) provides data redundancy capability, and at the same time can have data integrity verification and data encryption functions, solving data security problems from the data source.

●Generality and openness of interfaces

The digital intelligence cube (calculation center) emphasizes reliability, versatility and openness in the external interface design. This design allows the device to be installed quickly without additional adapters for interface conversion, increasing the efficiency and ease of deployment.
